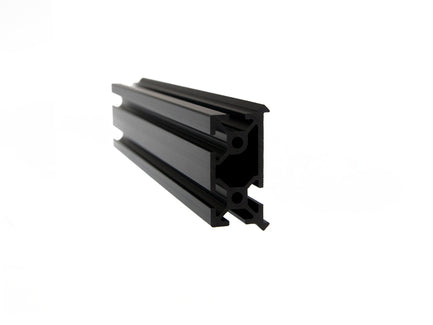

MakerSlide is an aluminum extrusion with two special V-shaped rails for wheels to roll on.
This component is interesting for people designing CNC machines because it acts as both the structural support and the linear bearing system. The biggest design, cost and fabrication hurdles in a new CNC machine design are the linear bearings. There are a lot of commercial and DIY solutions out there, but none support an easy, low cost and rapid fabrication philosophy.
The basic bearing concept is not new. The inventor of the MakerSlide, Bart Dring, had used it for years in his own designs and many high end commercial systems use it. This system is traditionally called a V wheel running on V rail. The problem with the commercial systems is that they are expensive, require a lot of accurate fabrication to integrate, and don’t seamlessly integrate into standard extrusion systems. The MakerSlide solves all three of these issues.
MakerSlide is a V rail integrated into a standard extrusion profile. If you are working on a CNC system like a 3D printer, CNC Mill, or CNC Router this MakerSlide might be the right structural support and linear motion system for you. We use it in the X-Carve.
There is a knowledge page with a lot of good information here.
Examples in use
We aren’t able to cut the rails to custom lengths, but please check out the videos above for easy instructions on how to cut them to size.
Note: We take great care to make sure the V feature is free of any dings or imperfections that will affect the performance. There may be minor dings, scratches, discolorations and other imperfections on other surfaces.
- Weight: 0.98 kg/m
- Cross Sectional Area: 353 mm[^2^]
- Area Moment of Inertia (mm[^4^]) : (X) 1.61 x 10[^4^] (Y) 6.1 x 10[^4^]
- Eccentric Spacers Adjustment: 1.5 mm max
- Wheel Spacing: 64.4 mm
- Type: MakerSlide
