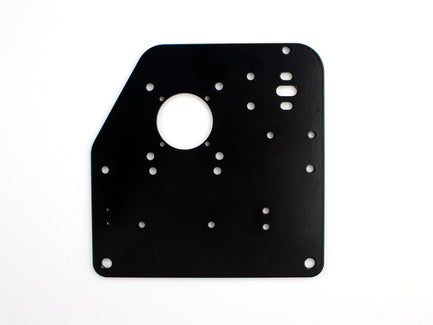

These are upgraded gantry side plates. These are standard equipment for X-Carve and are also fully compatible with Shapeoko 2. They have the following improvements:
- Better belt wrap on pulleys to engage more teeth
- Moves the gantry back to bring the spindle closer to the carriage for higher rigidity
- Easier mounting of NEMA 17 and NEMA 23 motors
- Mounts for drag chain and a limit switch
The part is open source and the files are available here:
2016 version of the gantry side plates are currently shipping, which includes the necessary mounting holes to make things work with the X-Carve Drag Chain Upgrade kit. Product photography will be updated shortly!
